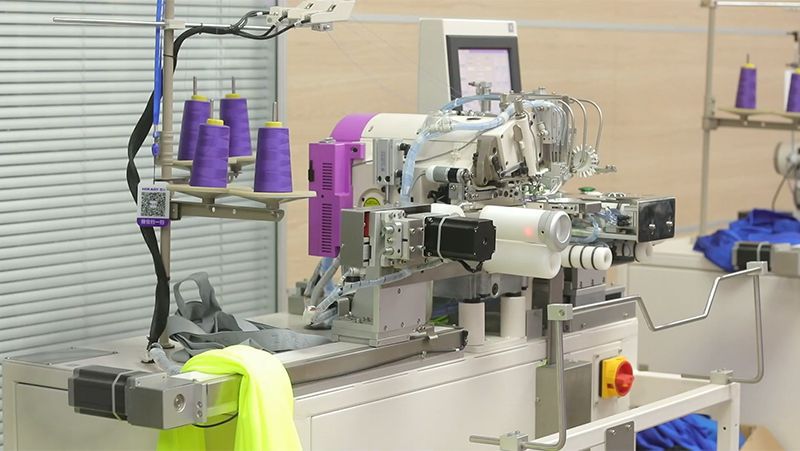

Automatic Elastic Waistband Attaching Machine

At Hikari, we tackle the challenges of achieving neatly aligned and evenly tensioned elastic attachments with our automatic elastic waistband attaching machine, replacing traditional manual stitching with precision and efficiency.
Our latest model of automatic elastic waistband attaching machine features advanced patent technology for automated fabric alignment, ensuring a smooth and seamless operation. Compared to similar products, our elastic waistband sewing machine boasts higher adaptability to cater to a variety of fabric types, meeting diverse manufacturing needs.

Specifications

Model	HSAT-K10
Needle	DPX27#9#12
No. of needles	2
No. of threads	4
Needle pitch	2
Sewing width	2 x4
Sewing length	0.7-3.8mm
Differential ratio	0.8-18
Presser foot lifting height	7
Sleeve and pant hem height	2-9cm
Sleeve and pant hem range	35-140cm
Speed (S.P.M)	4500 r/min
Dimensions	1380x780x1360mm

Features

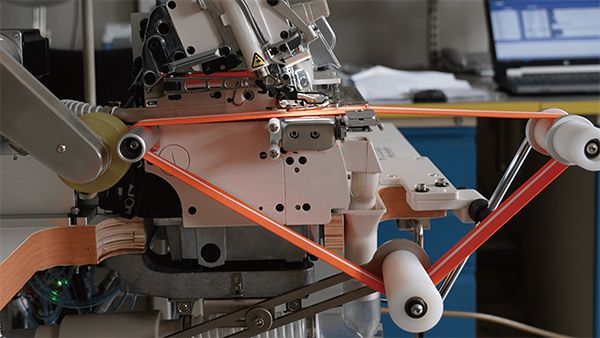

2. Three-Wheel Positioning and Circular Operation The innovative three-wheel positioning and circular operation mechanism allow the machine to stitch fabric smoothly, ensuring consistent edge alignment, even tension, and visually appealing stitches.
2. Expanded Stitching RangeWith an expanded range of 35cm to 140cm, this sewing machine accommodates a variety of apparel sizes, catering to both children's and adult waistbands.
2. Advanced Fabric Alignment Technology Our cutting-edge fabric alignment system enhances the sewing process by ensuring fabric synchronization, resulting in improved overall product quality.

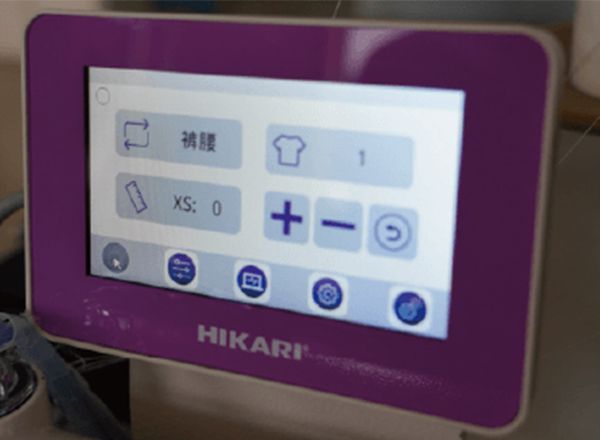

2. - Automatic Counting: Simplify your production tracking with the automatic counting function.
  - Automatic Waistband Expansion: The machine's sensor-based automatic waistband expansion system eliminates the need for traditional knee-control switches, providing a faster and more convenient operation.
  - Synchronized Foot Lift and Thread Cutting: The automatic foot lift and thread cutting feature save effort and increase efficiency during operation.
  - Differential Feed Top-Loading: The differential feed top-loading system ensures smooth and swift fabric feeding, preventing fabric layering issues during upper and lower seam attachment.
