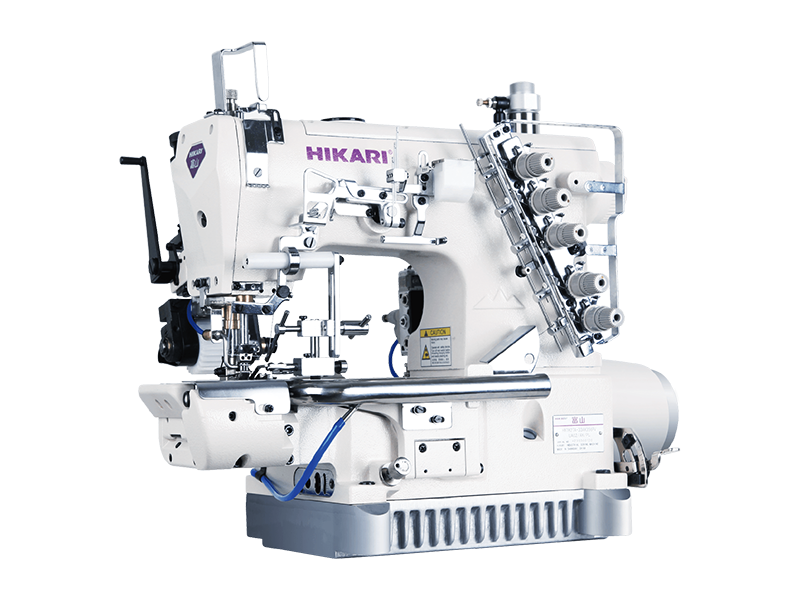

Interlock Sewing Machine, HW782TA
Computerized direct drive cylinder bed flatlock machine with automatic thread trimmer
Introducing our cutting-edge computerized direct drive cylinder bed flatlock machine equipped with an automatic thread trimmer. The flatlock stitch produced by this sewing machine is widely used for neckband, cuffs, hems, and decorative edges in knitwear garment production.
Our flatlock machine is equipped with an innovative pneumatic cooling system that ensures a stable production process by reducing the chances of needle overheating and thread breakage, guaranteeing a smooth and efficient workflow. With an extended needle bed and feed dog, our flatlock machine can accommodate larger stitch lengths, boosting production efficiency.
| Model | ||||||
| Needle | UY128GAS#10S | UY128GAS#10S | UY128GAS#10S | UY128GAS#10S | UY128GAS#10S | UY128GAS#10S |
| No. of needles | 3 | 3 | 3 | 3 | 3 | 3 |
| No. of threads | 3 | 3 | 5 | 5 | 5 | 5 |
| Needle pitch | 5.6 | 5.6 | 5.6 | 5.6 | 6.4 | 6.4 |
| Stitch length | 4.5mm | 4.5mm | 4.5mm | 4.5mm | 4.5mm | 4.5mm |
| Presser foot lifting height | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Differential ratio | 0.9-1.3 | 0.9-1.3 | 0.9-1.3 | 0.9-1.3 | 0.9-1.3 | 0.9-1.3 |
| Speed (S.P.M) | 5500 r/min | 5500 r/min | 5500 r/min | 5500 r/min | 5500 r/min | 5500 r/min |
| Dimensions | 705x415x655mm | 705x415x655mm | 705x415x655mm | 705x415x655mm | 705x415x655mm | 705x415x655mm |
-
-
Pneumatic Cooling System Enhance stability and prevent needle overheating, ensuring a steady and reliable production process.
-
-
-

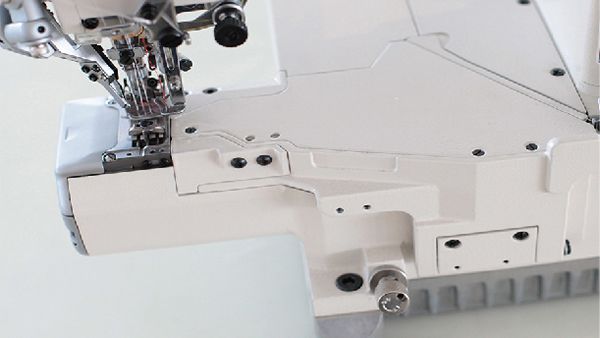

46mm Outer Perimeter Easier fabric feeding during production, providing greater adaptability.
-
-
-

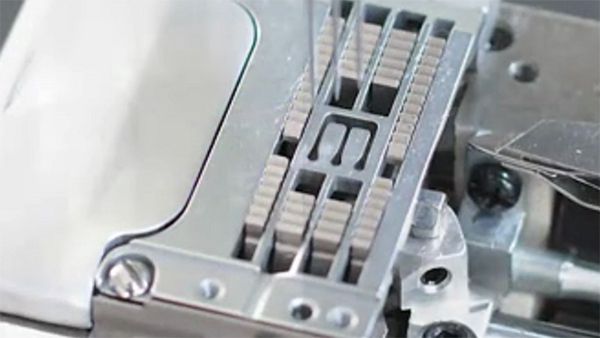

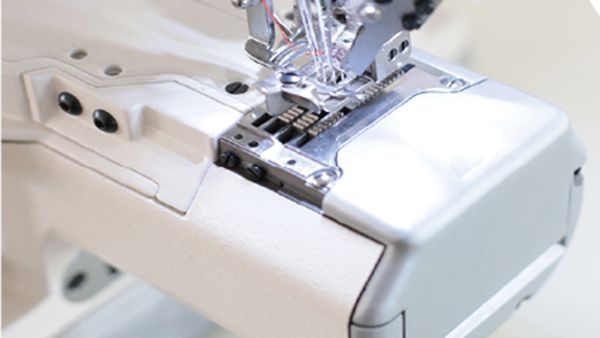

Extended Needle Bed and Feed Dog Achieve larger stitch lengths for improved production efficiency.
-
-
-

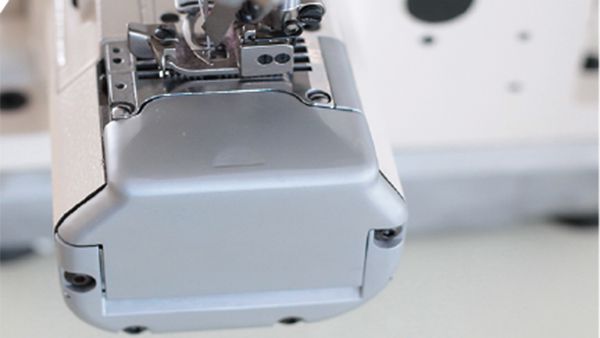

Optional Front Cover Facilitate the installation of pullers, allowing for multi-functional usage.
-
-
-

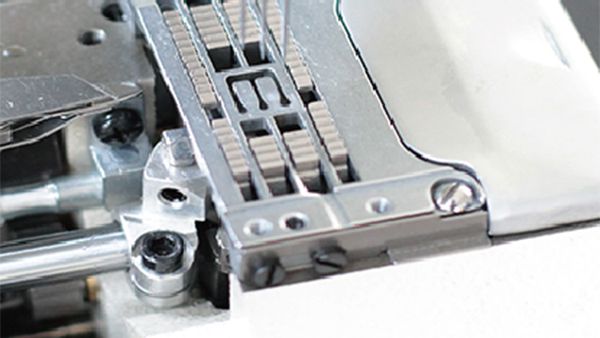

Optional Needle Plate Tongue Available for light and heavy materials, providing convenience for various sewing scenarios.
-
