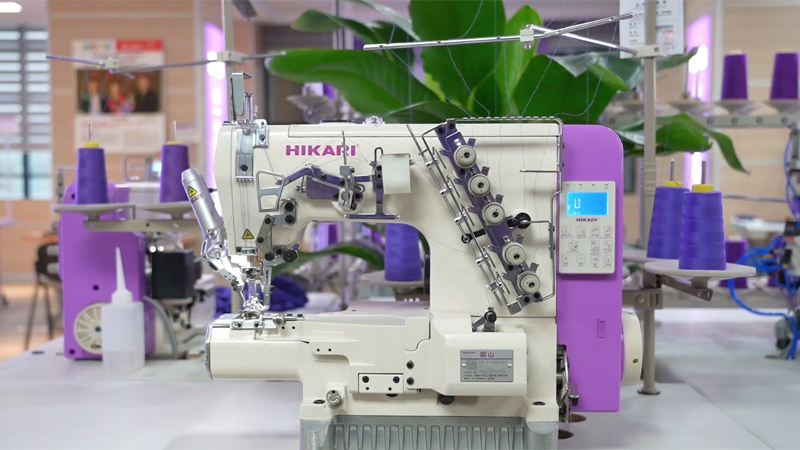

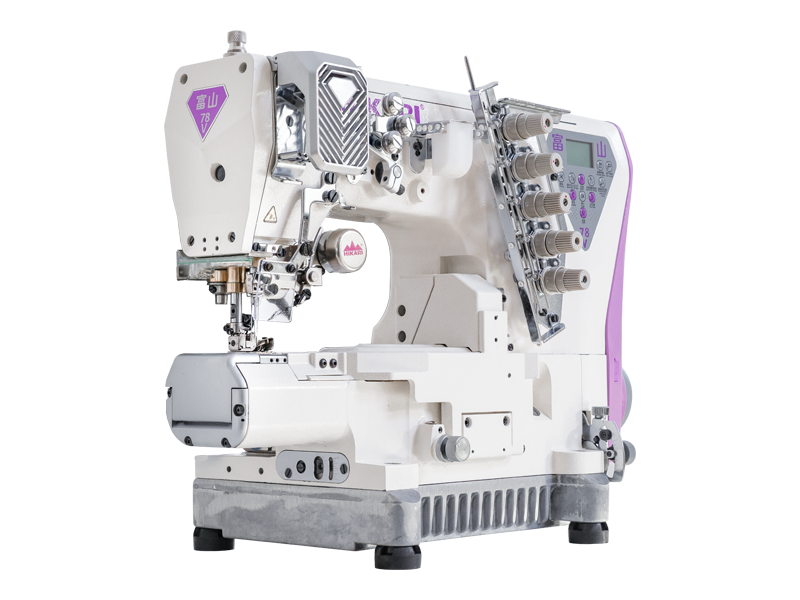

Interlock sewing machine, HW78V
  • It features intelligent thread tension control technology, which allows for smooth stitching even on thin fabrics.
  • This interlock sewing machine can be designed with a dense stitch or lock-sewing function to prevent edges from unraveling.
  • Optional rear puller
Specifications
Model HW78V-01x356/UTM HW78V-01x356/UAM HW78V-01x356/UTM/A HW78V-01x356/UAM/T
Needle UYX128GAS UYX128GAS UYX128GAS UYX128GAS
No. of needles 3 3 3 3
No. of threads 5 4 5 4
Needle pitch 5.6 5.6 5.6 5.6
Stitch length 4.5mm 4.5mm 4.5mm 4.5mm
Presser foot lifting height 7mm 7mm 7mm 7mm
Differential ratio 0.9-1.3 0.9-1.3 0.9-1.3 0.9-1.3
Speed (S.P.M) 5000 5000 5000 5000
Dimensions 705x415x655mm 705x415x655mm 705x415x655mm 705x415x655mm
Features

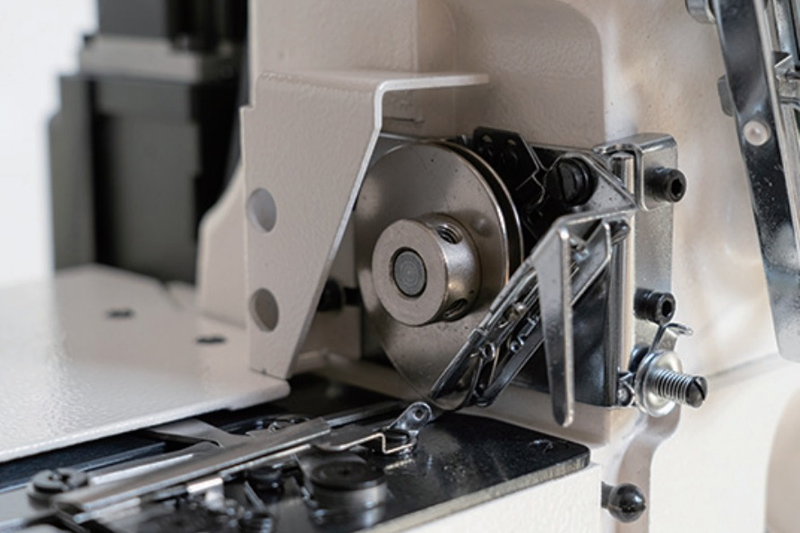

    1. Fast and Quiet Thread Trimming

    2. Fast and Quiet Thread Trimming Innovative presser foot lifter and thread trimmer system for fast and quiet thread trimming.

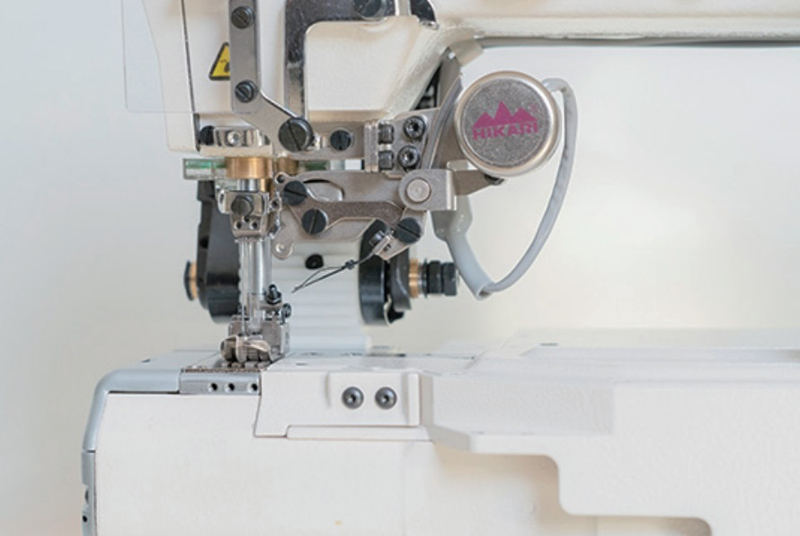

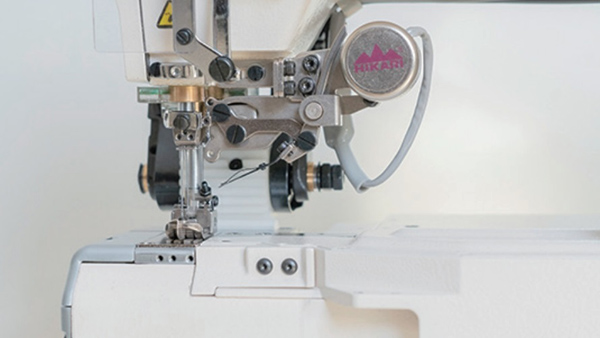

    1. Digital Foot Lifter Control

    2. Digital Foot Lifter Control Digital foot lifter control, adjustable up to 7mm for easier fabric feeding.

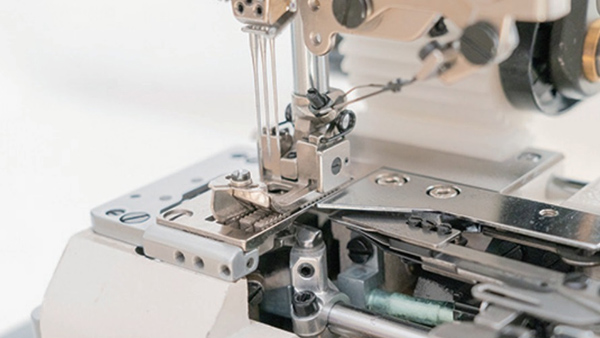

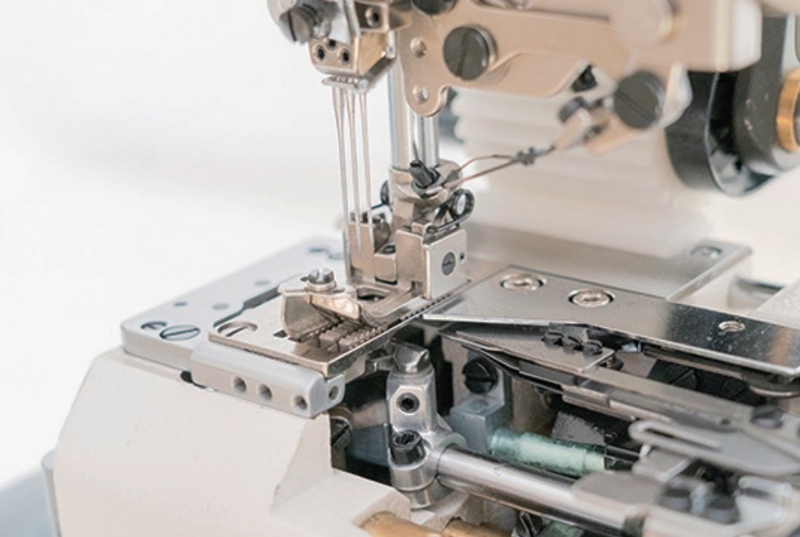

    1. Sewing Needle with Smooth Roundness

    2. Sewing Needle with Smooth Roundness The needle with a diameter of 280mm makes the sewing faster and easier to improve productivity.

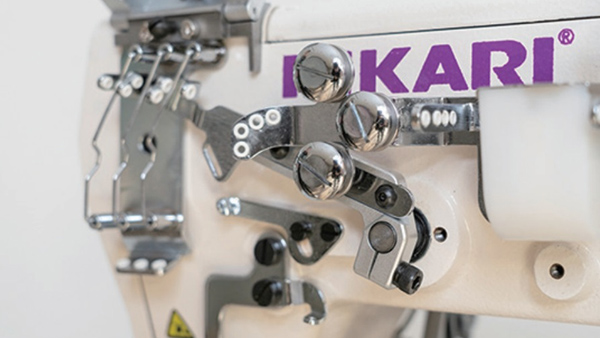

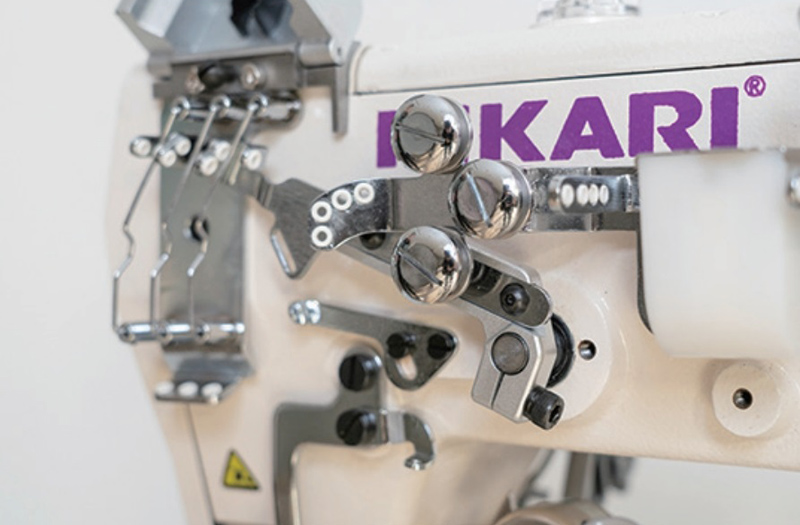

    1. Ceramic Threading Guide Hole

    2. Ceramic Threading Guide Hole Wear-resistant ceramic thread guide holes for a smoother stitching experience.

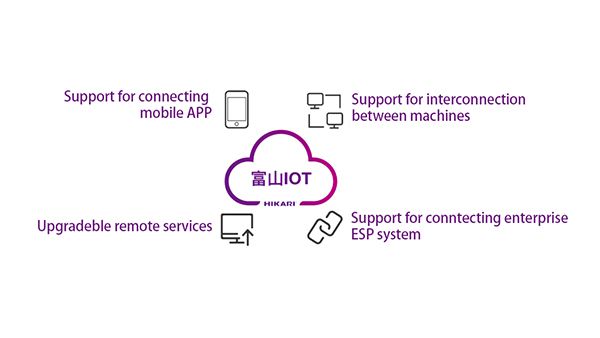

    1. IoT Functionality

    2. IoT Functionality IoT functionality included, for a “digital factory” network connected equipment system.
